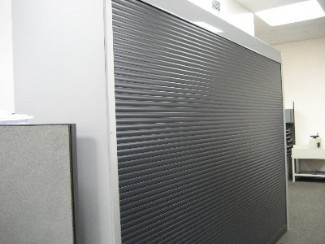

security doors provide a security system that is quick, simple
and easy to both operate and install. During office hours, these
lightweight doors roll up and out of sight, yet when closed and
locked, they provide a solid aluminum wall to safeguard medical
records and other personal health information. Because the doors
are custom made, they may be affixed to existing shelves, record
rooms, or whatever area needs to be secured.
Protection security shutters make
it possible to secure information in a medical office environment
without having to relocate the existing medical records. Unlike
most retrofit solutions available on the market today, the design
of a rolling security door provides a solution that results in
minimal to no loss of filing space. Each rolling door unit is
designed for easy installation resulting in minimal down time
manufacturing design of the pre-assembled box incorporates a counter-balance
spring to facilitate easy lifting, and provides a check against
rapid closing speeds. This counter balance design incorporates
metal slats that consist of two aluminum skins sandwiched with
a core of plurethane foam thus providing lightweight strength.
eliminate unwanted resistance or misalignment that is found with
other products, the alignment is accomplished by the installation
of the pre-assembled box into the guide rails, thus ensuring a
smooth transition of the stats from the box to the rail system.
After each of the two guide rails are inserted into the pre-assembled
box, the assembled unit is then attached to the existing cabinetry.
physical components consist of the side guide rails and a pre-assembled
box, which houses the roll of slats. When the side guide rails
are less than 76", the box will be 6-1/2" x 6-1/2"
square. Longer guide rails will require a 7" x 7" box.
Side guide rails measure 2-1/8" wide x 7/8". Drilling
for guide rails can be surface drilling, on the 2-1/8" face,
or recess drilling, on the 7/8" side.
is provided by a single key cylinder lock that is located in the
middle of the base slat. The rotation of the key cylinder forces
the internal locking bars to be pushed into the side guide rails.
With file extenders from Protection Security Shutters, existing
shelving can be easily modified for a hassle-free retrofit. Because
many existing folders extend out and in front of the shelving,
file extenders provide the additional space needed for rolling
doors to clear protruding files.
