Document Processing Casework

A variety of document storage options on our base and upper cabinets provide the tailored solution for your copy center, kit building or refreshment area. Hamilton Sorter document processing casework combines the aesthetic of built-in millwork without the extended lead times and designer liability common with custom mill-work applications.

Hamilton Sorter is available on GSA schedule.

Options include transparent backs and security doors, open backs for pass-through applications and platform bases to maximize worksurface area. Sorters lock into console bases or can also be wall-hung with matching cabinet storage.

Sort Module Specifications

• Sort shelves re-adjust along full depth rigid PVC plastic channel guides that allow for easy shelf adjustment.
• Adjustable Plastic Shelving: Constructed of 1/8" thick .90 gauge polyethylene with memory retention. Shelves are adjustable on 1" increments that provide full depth support. Shelves are supported front and rear with aluminum index track and clear index cover and are rated for capacity loads up to 35 lbs.
• Adjustable Wood Shelving: Constructed of 5/8" thick matching thermally fused melamine with 1.5mm PVC edge banding. Shelves are adjustable on 1" increments and have optional self-applying index strips. Shelves are rated for capacity loads up to 50 lbs.
• Sort modules come in 1 to 6 column configurations. Modules up to 30" high feature 5 re-adjustable shelves providing 6 openings. Modules over 30" high feature 7 re-adjustable shelves providing 8 openings. Additional shelves can be purchased separately or in packs of five.
• Sort modules are available in standard closed back, open back for pass through operations and plexiglass back for additional working light.
• Sort modules available standard, legal or oversize configurations for standard 81/2 x 11 size documents, legal size documents and oversize documents like newspapers and periodicals.
• Sort Module Shelf Inside Dimensions:
  • Standard size shelf inside dimensions: 10-1/8" width x 12" depth
  • Legal size shelf inside dimensions: 10-1/8" width x 16" depth
  • Oversize shelf inside dimensions: 12-1/8" width x 16" depth

Construction

• Side Panels: Constructed of 1" thick industrial grade 40-50 lb. substrate, double-faced melamine. Framed by matching 1.5mm PVC edge banding.
• Top and Bottom Panels: Constructed of 5/8" thick industrial grade 40-50 lb. substrate, double-faced melamine. Framed by matching 1.5mm PVC edge banding.
• Back Panel: Constructed of 5/8" thick industrial grade 40-50 lb. substrate, double-faced melamine.
• Vertical Dividers: Constructed of 5/8" thick industrial grade 40-50 lb. substrate, double-faced melamine. Framed by matching 1.5mm PVC edge banding.
• Sort modules are shipped fully assembled.

Assembly

• Sort modules are assembled using Hafele mini-fix cam hidden fastener system with metal-to-metal connection points. Parts are drilled using a 32mm hole drilling via computer controlled point-to-point machines for insured uniformity and consistency.
• Sort module affixes to Hamilton Sorter consoles with Hafele mini-fix cam lock so that depth of sort module can be readjusted for varying user requirements.

Optional Features

• Plexiglass doors in clear or smoked plexiglass with available locking feature.
• Optional 3", 6", 12" or 18" risers for access to additional console worksurface.
• Optional display boards for locator lists.
• Shelf dividers for partitioning of polyethylene shelving.
• Module drawers for organizing worksurface items such as staplers, paper clips and other loose items.

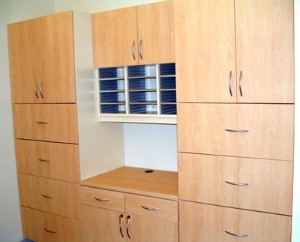

Document Processing Casework	Supply Storage Modular Casework

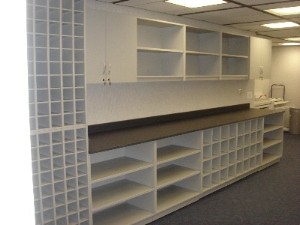

Modular Casework with Mail Room Storage	Document Storage Casework for plans & blue prints
