The Lean-Lift from Hanel is both storage efficiency and goods protection in one: at the center of the 'cabinet' is a computerized lift - called the extractor. In front and behind it are the storage shelves. This is where the articles are stored in containers. The storage locations are accessed through electronic control by the extractor. It stores or retrieves the container requested. The system is operated comfortably at the optimum ergonomic height at the retrieval zone.

All Hanel Storage Systems products are available on the GSA Federal Supply Schedule. Please fill out our feedback form for more information.

With the Hanel Lean Lift, we offer a high quality, high-tech warehouse organization system with readily available materials which reduces work time, warehouse space and cost which provides a problem free work environment. The Lean-Lift from Hanel utilizes the available ceiling height - similar to a high bay/miniload system. In contrast to a high bay/miniload system, however, the Lean-Lift stores the parts on a height optimized basis avoiding wasted space. This means maximum storage capacity on a minimal footprint.

The fully automated Lean-Lift from Hanel brings the required articles to the retrieval zone in seconds. The state of the art microprocessor control systems from Hanel can communicate with your host computer on a real time basis installation or be used as a standalone warehouse management system. An overview of the inventory status is available at all times, shortages of parts are eliminated and the inventory can be reduced. Use of the Lean-Lift from Hanel ensures a constant overview of inventory status at all times.

The vertical transporter (extractor) has a 4 point suspension system. This offers enormous advantages:

  • The extractor does not tilt.
  • No problem with load imbalance, not even with heavy loads.
  • Easy maintenance from the side.
  • Roller chains are durable, no fatigue failures occur.
  • Long service life.
  • No replacement necessary after fixed maintenance intervals.
  • Roller chains have a higher rate of efficiency (98%).
  • More accurate positioning because of higher rigidity.
  • Non-slip hold in the event of emergency stops.

Lean-Lifts with a container load capacity of up to 1,104 lbs, now in a high speed version. (Vertical speed with loaded extractor, 1 m/sec). Horizontal speed jolt-free at 0.5 m/sec. Each Hanel Lean-Lift is also fitted with a soft-start control with frequency converter. The advantage: optimum acceleration and deceleration.

Retrieval points can be installed on more than one floor, depending on the height of the Hanel Lean Lift. Several users can operate the Lean Lift at the same time from different positions and levels.

Hanel Advantages

  • Fast storage and retrieval times.
  • Protection of stored articles.
  • Storage and handling of bulky, and heavy parts, or dissimilar sized parts.
  • Load carrying capacity per container up to 2,208 lbs.
  • Load carrying capacity per Lean Lift up to 132,450 lbs.
  • Material to operator, not operator to material: this saves time.
  • High efficiency and cost savings.
  • Seismic Zone 4 approved
  • Temperature Controlled Units, Cold Storage

The wide range of accessories, such as tool inserts, small parts trays, cutting tool holders and dividers contribute to making the Lean Lift from Hanel into a complete logistics systems that cuts costs, makes optimum use of space, eases workload and mimizes allocation times.

Controller Options

The variable control keyboard of the Hanel Lean Lift is positioned at the side of the access opening for ergonomic convenience.

MP12D-S
High performance compact control unit with numerous functions. Control and inventory management in one unit. The article number, storage location, quantity, minimum inventory and storage location size can be programmed. Job management and parts list management are also integrated. Four serial RS 232 interfaces enable a computer, printer and other peripheral devices to be connected.

MP100-D Powerful storage management

  • Up to 99 Lean Lifts can be controlled simultaneously with the MP 100 D.
  • Hardware and software can be integrated in the Lean Lift, so no additional PC required.
  • No complicated software installation on PC.
  • Direct hook-up to corporate network via ethernet.
  • MP 100 D data can be viewed by browser - ensuring constant transparency in the storeroom.
  • No additional communication software.
  • Automatic processing of jobs according to priority.
Hanel Lean Lifts
Lean Lift VLM Automated Vertical Storage
Lean lifts unique height scanner allows taller items to be stored
Vertical series of trays allows for dynamic automated storage
Military Body Armor Storage in a Hanel Lean Lift Vertical Lift Module
US Military automated storage systems Vertical Lift Modules from Hanel
Lean Lift for military body armor storage

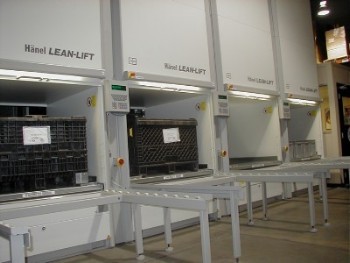

Bank of 4 Lean Lifts storing military supplies

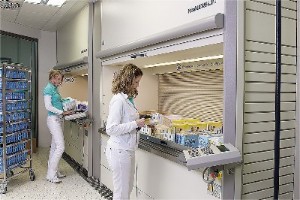

Automated Vertical Lift Module Secure Pharmaceutical Storage

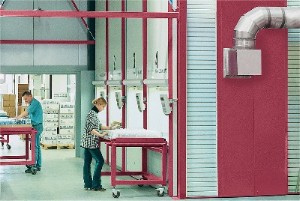

Lean Lift Vertical Lift Module with Internal Climate Controls
Automated Secure Pharmaceutical Storage
Lean Lift with Internal Climate Controls

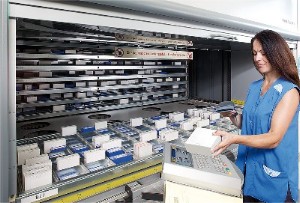

Lean Lift Automated Storage & Retrieval Stock Picking Order

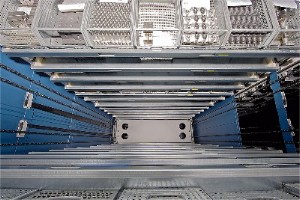

Lean Lift Trays from inside unit looking down extractor shaft
Lean Lift Stock Picking Order
Lean Lift Trays from inside unit looking down extractor shaft
